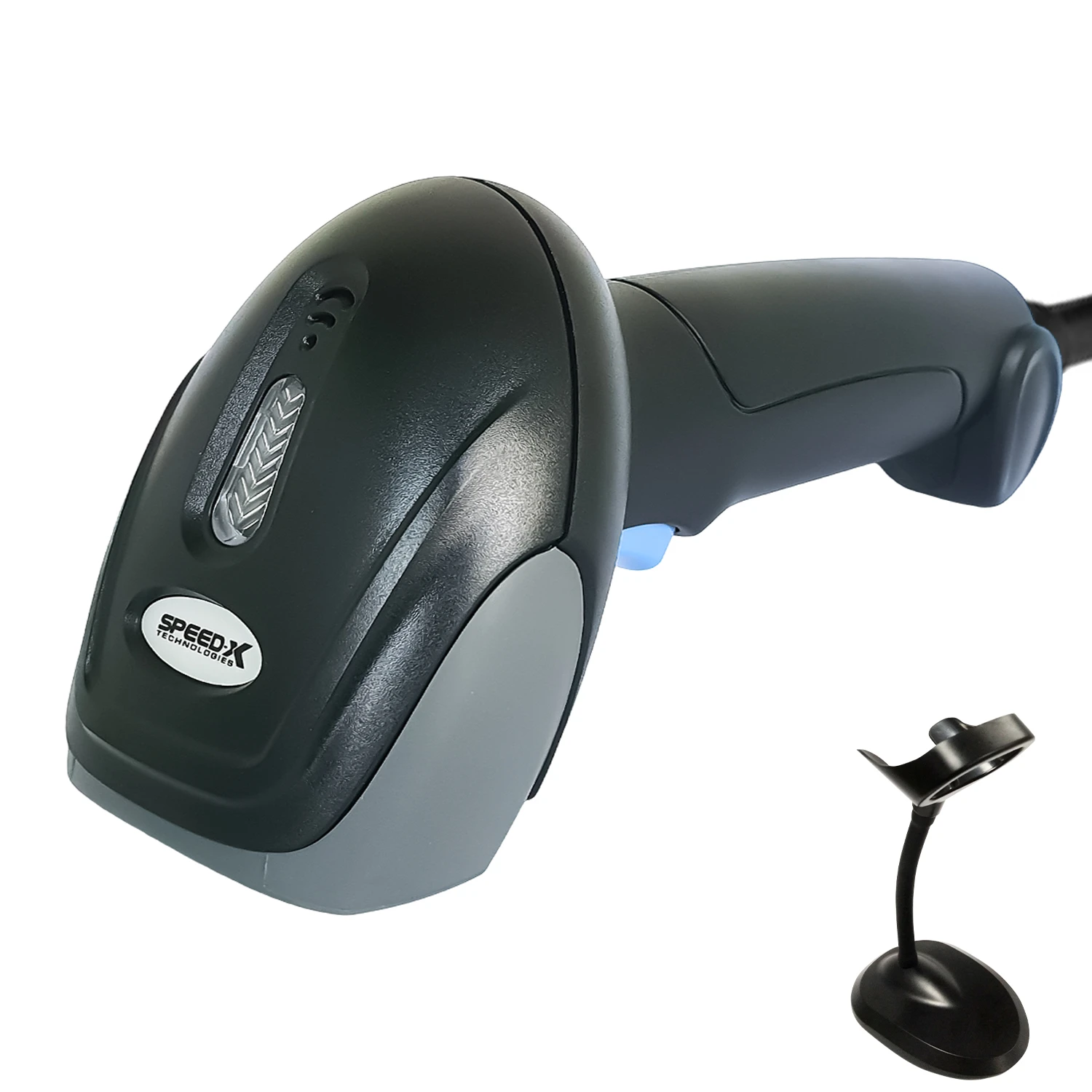

SPEED-X 8600 2D WIRE CMOS HANDHELD BARCODE SCANNER (PLUG AND PLAY USB CABLE)

SPEED-X 8600 2D WIRE CMOS HANDHELD BARCODE SCANNER (PLUG AND PLAY USB CABLE)

SPEED-X 8600 2D WIRE CMOS HANDHELD BARCODE SCANNER (PLUG AND PLAY USB CABLE) –

Technical Specifications

Electrical Characteristics

Interface Supported

USB HID KEYBOARD/USB COM

Input Voltage

DC 5V±10%

Current

Max::170mA

Dormant current：48mA

Optical Characteristics

Image Sensor

CMOS Array Sensor

Sensor Resolution

640×480 Pixels

Light Source

White LED

Aim Light Source

Red Bar LED

Performance Characteristics

Scanning Angle

Pitch angle:±60°;Skew angle:±40°;Tilt angle:±180°

Field of View

66°(H),50°(V)

Min Resolution

1D：0.127mm/5mil（PCS 0.9）

2D：0.202mm/8mil（PCS 0.9）

Min .PCS value

〉20%UPC/EAN 13（5mil）

Language

Multiple Languages

Data Edition

Support for custom data output

Decode Capability

1D : Code128（ISBT 128、AIM 128、GS1 128)、EAN-13、EAN-8、UPCE0、

UPCE1、UPC-A、ISBN、ISSN、Code11、Interleaved 2 of 5、Code39、

Code93、Code32、Codabar、Matrix 2 of 5、Industrial 25、IATA25、

MSI Plessey

2D: QR Code，Data Matrix，PDF417，Micro QR

Physical Characteristics

Dimensions

90mm*62mm*160mm(L*W*H)

Weight

125g(not included cable)

Indicator

Beeper, LED

Environmental Characteristics

Temperature

-20°- 65°C (operation) ， -30°- 70°C (storage)

Humidity

5 – 90% (operation) ；5 – 90% (storage)5

Ambient Light:

Up to 80,000 lx

Shock Drop Test

1.5m drop onto concrete surface

Decoding Depth of Field

Symbology

Resolution

Barcode

number

Barcode width

Nearest

Farthest

Code 128

5mil

20

4.3×1.5cm

4cm

8cm

Code 128

15mil

7

4.3×1.5cm

7cm

32cm

Code 39

6.67mil

16

4.4×1.5cm

8.5cm

11cm

Code 39

20mil

4

4.3×1.5cm

7cm

37cm

EAN-13

13..34mil

13

4.2×1.5cm

6cm

22cm

QR code

20mil

120

2x2cm

4.5cm

22cm

Data Matrix

6.67mil

60

0.5×0.5cm

3cm

11cm

Screen QR Code

18

2.1×2.1cm

3cm

41cm

Screen QR Code

18

3.7×3.7cm

10cm

78cm

Weight: 0.50 KGs
