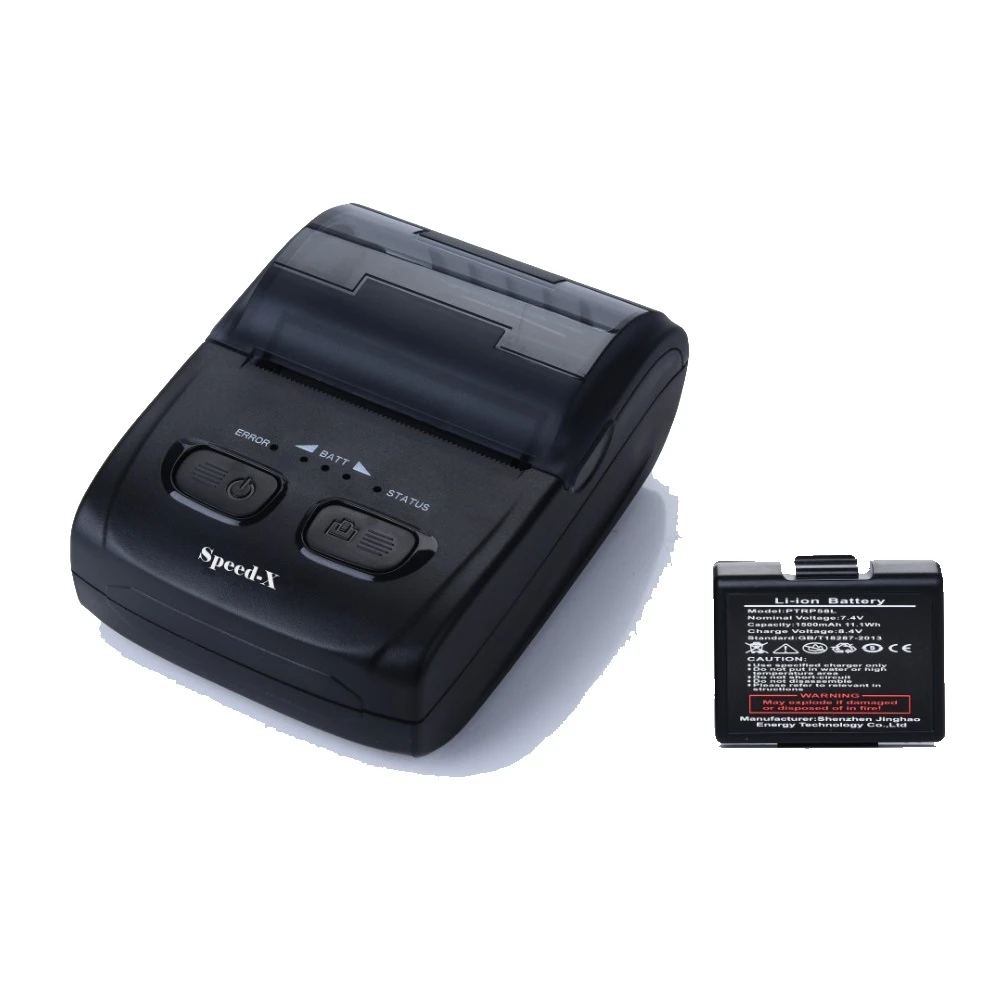

Speed-x BT500M MINI PORTABLE BLUETOOTH+USB PRINTER 58MM

Speed-x BT500M MINI PORTABLE BLUETOOTH+USB PRINTER 58MM -

Detail:

Item

Parameter

Print parameter

Printing Method

Thermal Line

Effective Printing Width

58mm

Resolution

384 dots/line（8dots/mm，203dpi）

Printing Speed

90 mm/S(MAX)

Interface

USB+Bluetooth

Line spacing

3.75mm（Can adjust line spacing by command）

Line No.

Font A:32 character /Line

Font B:42 character/Line

Character Size

ANK character，Font A：1.5×3.0mm（12×24 dots）

Font B：1.1×2.1mm（9×17 dots）

Bar code character

Extended character set

PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai)

Bar code

1D.Bar code：UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/

CODABAR/CODE93/CODE128

2D.Bar code：QRCODE

Graphics printing

Graphics printing

Supports bitmap download and print (support each bitmap size Max.8K, download up to 5pcs)

Power saving Mode

Smart power saving

Support

Variable speed printing

Support

Consumption

Support

Dormancy

Support

Detection

Sensor

Lack of paper detection

Indicator

Power Display

Support

Charge Indicator

Support

Lack of paper

Support

Paper

Type

Thermal

Width

57.5±0.5mm

thickness

≤0.12mm

Diameter

≤40mm

Feed

Easy（Clamshell feed）

Print command

Commands

ESC/POS

Power

Type

Rechargeable Lithium polymer battery

Capacity

1500mAh/7.4V,

Charger

5.0V/1A

Buffer

Input

4KB

NV Flash

40KB

Physical features

Weight

200G

Dimension

112*79*48(MM)

Environment

Operating

Temp：5 ~ 45℃， Humidity：10 ~ 80%

Storage

Temp：-10 ~ 50℃ ï¼ŒHumidity：10 ~ 90%（No Dew）

Reliability

Print head life

50KM（Printing Density≤12.5）

Software

Driver

Android,IOS,Linux,Windows

Weight: 0.50 KGs
