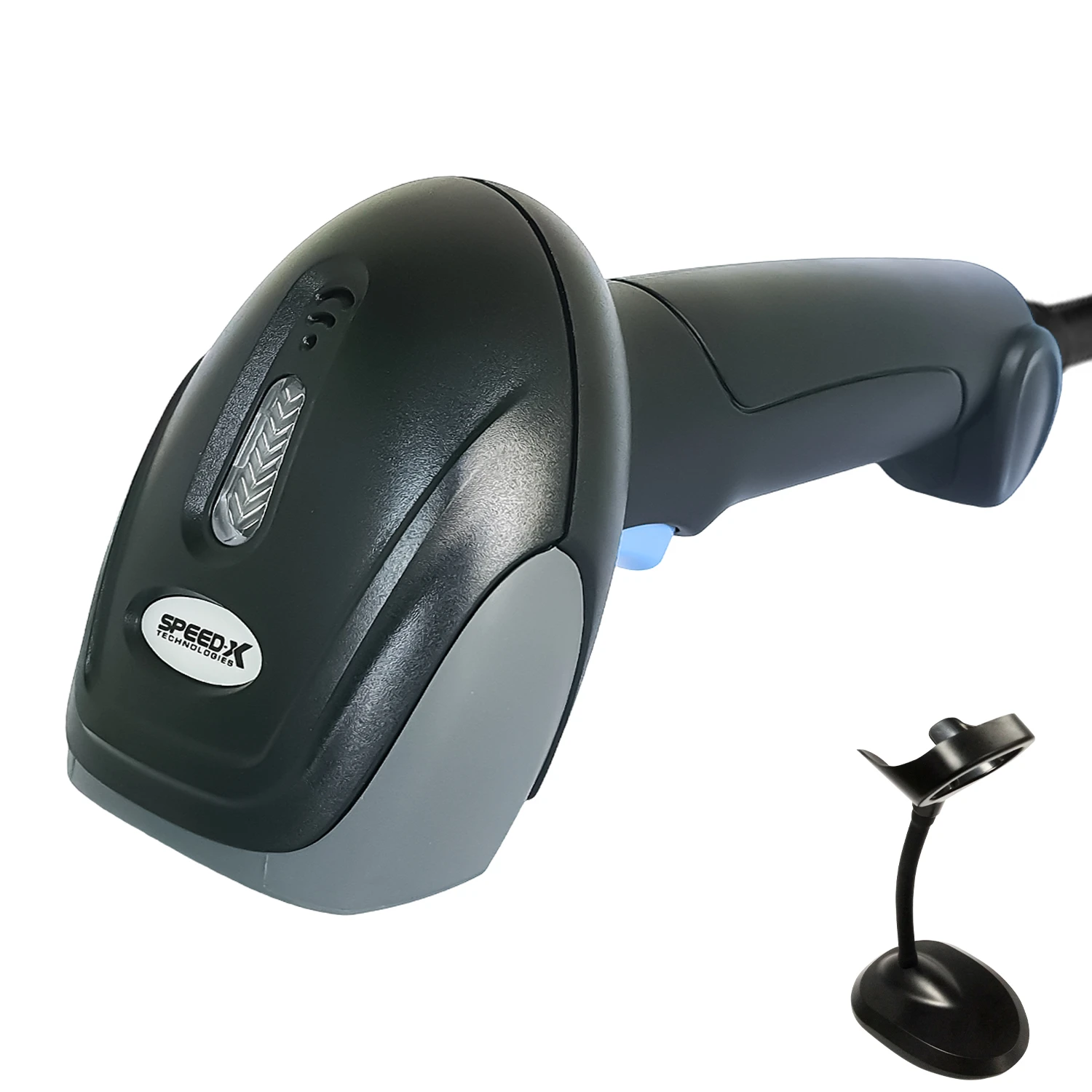

SPEED-X 8600 2D WIRE CMOS HANDHELD BARCODE SCANNER (PLUG AND PLAY USB CABLE)

SPEED-X 8600 2D WIRE CMOS HANDHELD BARCODE SCANNER (PLUG AND PLAY USB CABLE) -

Technical Specifications

Electrical Characteristics

Interface Supported

USB HID KEYBOARD/USB COM

Input Voltage

DC 5V±10%

Current

Max::170mA

Dormant current：48mA

Optical Characteristics

Image Sensor

CMOS Array Sensor

Sensor Resolution

640x480 Pixels

Light Source

White LED

Aim Light Source

Red Bar LED

Performance Characteristics

Scanning Angle

Pitch angle:±60°;Skew angle:±40°;Tilt angle:±180°

Field of View

66°(H),50°(V)

Min Resolution

1D：0.127mm/5mil（PCS 0.9）

2D：0.202mm/8mil（PCS 0.9）

Min .PCS value

〉20%UPC/EAN 13（5mil）

Language

Multiple Languages

Data Edition

Support for custom data output

Decode Capability

1D : Code128（ISBT 128、AIM 128、GS1 128)、EAN-13、EAN-8、UPCE0、

UPCE1、UPC-A、ISBN、ISSN、Code11、Interleaved 2 of 5、Code39、

Code93、Code32、Codabar、Matrix 2 of 5、Industrial 25、IATA25、

MSI Plessey

2D: QR Code，Data Matrix，PDF417，Micro QR

Physical Characteristics

Dimensions

90mm*62mm*160mm(L*W*H)

Weight

125g(not included cable)

Indicator

Beeper, LED

Environmental Characteristics

Temperature

-20°- 65°C (operation) ， -30°- 70°C (storage)

Humidity

5 - 90% (operation) ；5 - 90% (storage)5

Ambient Light:

Up to 80,000 lx

Shock Drop Test

1.5m drop onto concrete surface

Decoding Depth of Field

Symbology

Resolution

Barcode

number

Barcode width

Nearest

Farthest

Code 128

5mil

20

4.3x1.5cm

4cm

8cm

Code 128

15mil

7

4.3x1.5cm

7cm

32cm

Code 39

6.67mil

16

4.4x1.5cm

8.5cm

11cm

Code 39

20mil

4

4.3x1.5cm

7cm

37cm

EAN-13

13..34mil

13

4.2x1.5cm

6cm

22cm

QR code

20mil

120

2x2cm

4.5cm

22cm

Data Matrix

6.67mil

60

0.5x0.5cm

3cm

11cm

Screen QR Code

18

2.1x2.1cm

3cm

41cm

Screen QR Code

18

3.7x3.7cm

10cm

78cm

Weight: 0.50 KGs
