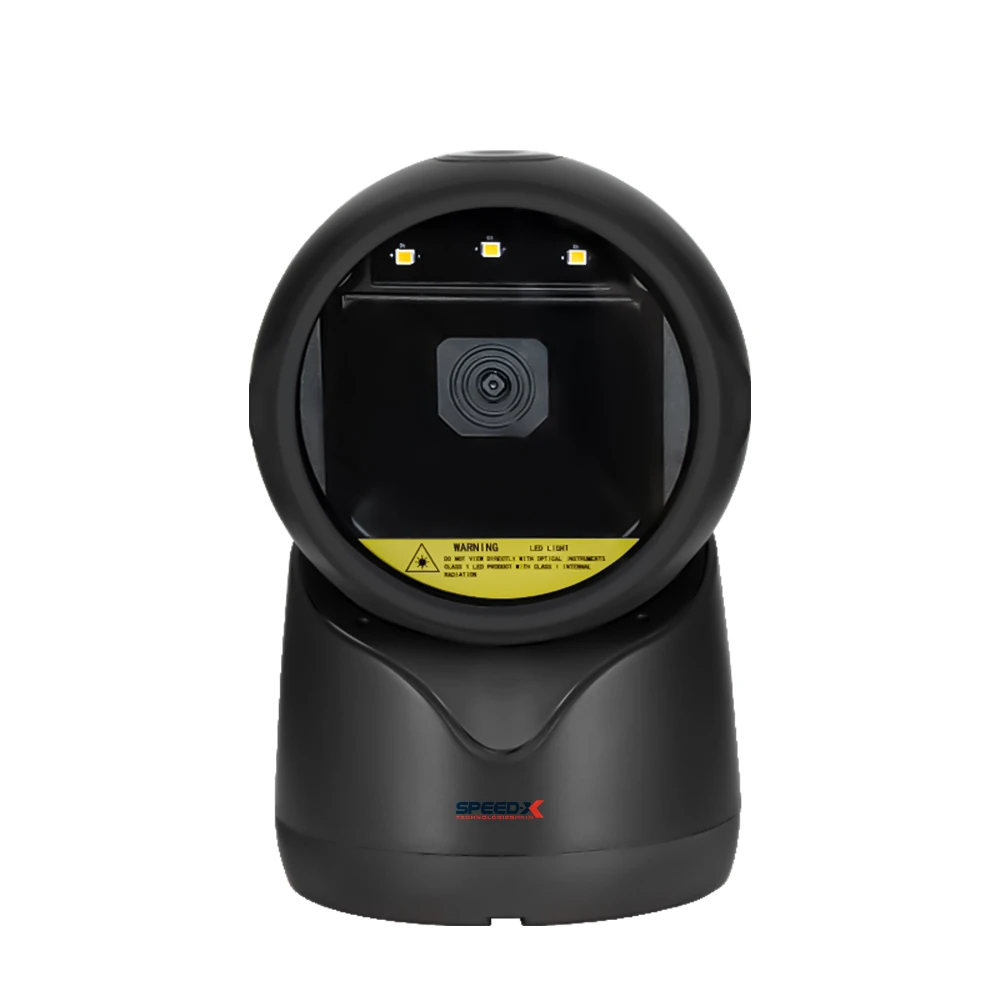

SPEED-X 9400 2D HIGH SPEED DESKTOP BARCODE IMAGE SCANNER

SPEED-X 9400 2D HIGH SPEED DESKTOP BARCODE IMAGE SCANNER

Speed-x 9400

2D Barcode Image Scanner

Technical Specifications

Electrical Characteristics

Interface Supported; RS-232/USB HID KEYBOARD/USB VCP

Input Voltage; DC 5V±10%

Current; Max:200mA

Optical Characteristics

Image Sensor CMOS Array Sensor

Sensor Resolution 1280 X 800 Pixels

Light Source RED LED

Performance Characteristics

Field of View 58°(H),45°(V)

Min Resolution 1D?0.076mm/3mil?PCS 0.9?

2D?0.152mm/7mil?PCS 0.9?

Min .PCS value ?30% UPC/EAN 13?13mil?

Language Multiple Languages

Data Edition Support for custom data output

Decode Capability 1D : UPC-A / UPC-E / EAN-8 / EAN-13, ISBN, Code 39, Code 93, Code 128,

Code 32, Codabar, MSI Plessey, Interleaved 2 of 5, Pharmacode ,

2D : PDF417, MicroPDF417, Data Matrix, QR Code, Micro QR Code, DotCode

Physical Characteristics

Dimensions 100mm*95mm*158mm(L*W*H)

Weight 265g

Indicator Beeper, LED

Environmental Characteristics

Temperature 0°?50°C (operation)

-10°?60°C (storage)

Humidity 20 – 85% (operation) ) 20 – 85% (storage)

Shock Drop Test 1.5m drop onto concrete surface

Weight: 1.00 KGs
