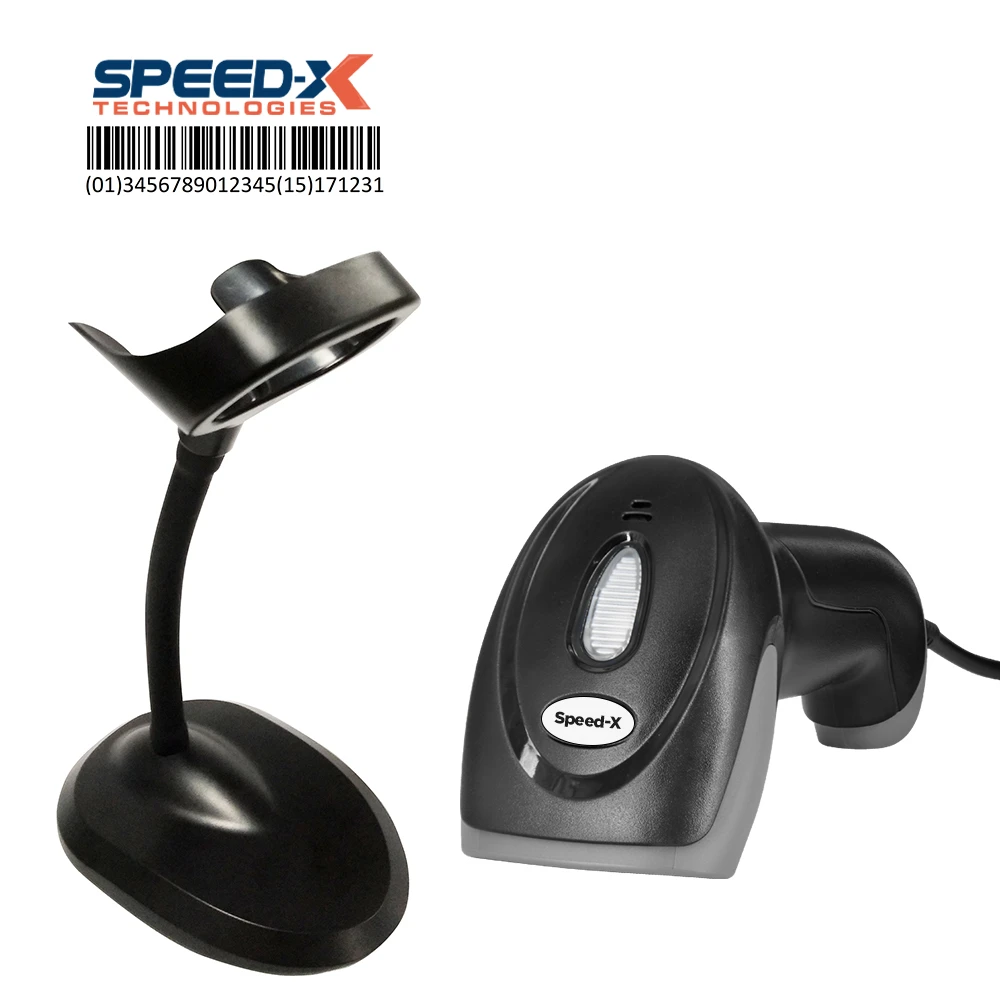

SPEED-X 8400 1D LASER HANDHELD BARCODE SCANNER (PLUG AND PLAY USB CABLE)

SPEED-X 8400 1D LASER HANDHELD BARCODE SCANNER (PLUG AND PLAY USB CABLE)

SPEED-X 8400 1D LASER HANDHELD BARCODE SCANNER (PLUG AND PLAY USB CABLE) –

Product Specification

Electrical Characteristics

Interface Supported USB HID KEYBOARD/USB VCP or RS-232

Input Voltage DC 5V±5%

Current Max:185mA

Performance Characteristics

Light Source 650nm visible laser diode

Decoding speed 100±20/s

Scanning Angle Pitch angle：-30° to 0°，0° to +30°

Skew angle：-60° to 0°，0° to +60°

Tilt angle：-30° to 0°，0° to +30°

Min Resolution 1D : 4mils

Min .PCS value >30%UPC/EAN 13(13mil)

Decode Capability 1D：EAN13，EAN8，UPC A，UPC E，ISSN, ISBN, UPC-A ,

UPC-E , CODE39 , CODE32, CODE128, UCC-EAN128, CODE93, CODE11, CODABAR,

MSI, CROSS 25 CODE, CHINA POST 25 CODE, MATRIX 25CODE,

INDUSTRIAL 25 CODE, GS1 DataBar Omnidirectional, GS1 DataBar Limited

Environmental Characteristics

Temperature operation：0°C-50°C

storage：-10°C-60°C

Humidity operation：20%~85% (no condensation)

storage：20%~95%（no condensation）

Physical Characteristics

Dimensions 90mm x67mm x 168mm(L*W*H)

Weight 130g

Indicator Beeper, LED

Decoding Depth of Field

Symbology Resolution Barcode number Barcode width Nearest Farthest

Code128 5mil 20 4.3×1.5cm 5cm 10cm

Code128 15mil 7 4.3×1.5cm 2.5cm 26cm

Code39 6.67mil 16 4.4×1.5cm 3cm 19cm

Code39 20mil 4 4.3×1.5cm 3cm 32cm

EAN13 13.34mil 13 4.2×1.5cm 2cm 24cm

Weight: 0.50 KGs
